pottu::TimeHistogrammer< SelectorTrigger, SelectorTarget > Class Template Reference

Inheritance diagram for pottu::TimeHistogrammer< SelectorTrigger, SelectorTarget >:

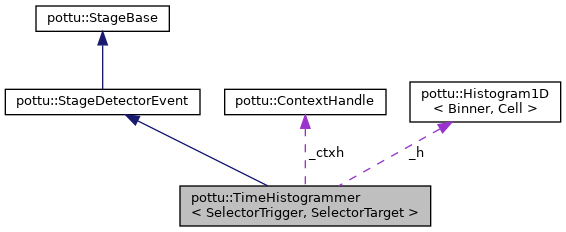

Collaboration diagram for pottu::TimeHistogrammer< SelectorTrigger, SelectorTarget >:

Public Member Functions
	TimeHistogrammer (SelectorTrigger selTrigger, SelectorTarget selTarget, _histogram_1d_type *histogram)
	Constructor of TimeHistogrammer DEPRECATED. More...
	TimeHistogrammer (SelectorTrigger selTrigger, SelectorTarget selTarget, _result_tree_type tree, const std::string &histname, double low, double high, uint32_t binc)
virtual void	process (std::vector< DetectorEvent > &data) noexcept
	Uses or modifies detector events in a container. More...
Public Member Functions inherited from pottu::StageDetectorEvent
virtual	~StageDetectorEvent ()
	Virtual desctructor.

Public Attributes
ContextHandle *	_ctxh
SelectorTrigger	_selTrigger
SelectorTarget	_selTarget
_histogram_1d_type *	_h
double	_low
double	_high
int64_t	_tsPrev {0}
std::deque< int64_t >	_queueTrigger
std::deque< int64_t >	_queueTarget

Constructor & Destructor Documentation

TimeHistogrammer()

template<class SelectorTrigger , class SelectorTarget >

pottu::TimeHistogrammer< SelectorTrigger, SelectorTarget >::TimeHistogrammer ( SelectorTrigger  selTrigger, SelectorTarget  selTarget, _histogram_1d_type *  histogram  )

inline

Constructor of TimeHistogrammer DEPRECATED.

Parameters

selTrigger	Selector functor which is true for event acting as trigger.
selTarget	Selector functor which is true for event acting as target.
histogram	1D Histogram pointer to histogram to be filled.

Histogram binner is used to deduct the maximum history length required to do the job. If a detector event is both trigger and target simultaneously then the time histogram will include also self coincidence peak at zero time!

Member Function Documentation

process()

template<class SelectorTrigger , class SelectorTarget >

virtual void pottu::TimeHistogrammer< SelectorTrigger, SelectorTarget >::process ( std::vector< DetectorEvent > &  data )

inlinevirtualnoexcept

Uses or modifies detector events in a container.

Parameters

data	Vector containing detector events to be modified or used.

Typically only the fields of each detector event is modified and the event is otherwise kept the same.

Implements pottu::StageDetectorEvent.

---

The documentation for this class was generated from the following file:

• /home/jhsaren/git/analysis/pottu/pottu/TimeHistogrammer.hpp
