pottu::TimeAdjuster Class Reference

Adjusts individual channel timing and merges channels back in time order. More...

#include <TimeAdjuster.hpp>

Inheritance diagram for pottu::TimeAdjuster:

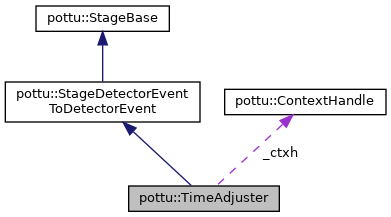

Collaboration diagram for pottu::TimeAdjuster:

Public Member Functions
void	setCorrection (uint16_t ch, int64_t correction)
	Registers timestamp correction for a channel. More...
int64_t	getCorrection (uint16_t ch) const noexcept
	Returns correction of the timestamp registered to a channel. More...
virtual void	process (std::vector< DetectorEvent > &input, std::vector< DetectorEvent > &output)
	Consumes detector events and returns different detector events. More...
Public Member Functions inherited from pottu::StageDetectorEventToDetectorEvent
virtual	~StageDetectorEventToDetectorEvent ()
	Virtual destructor.

Public Attributes
ContextHandle *	_ctxh
std::array< int64_t, 4096 >	_chTimeCorrections
int64_t	_maxCorrection {0}
int64_t	_minCorrection {0}
int64_t	_correctionWidth {0}
int64_t	_tsPrev {0}
std::deque< DetectorEvent >	_queue

Detailed Description

Adjusts individual channel timing and merges channels back in time order.

Member Function Documentation

getCorrection()

int64_t pottu::TimeAdjuster::getCorrection ( uint16_t  ch ) const

inlinenoexcept

Returns correction of the timestamp registered to a channel.

Returns

Registered correction or zero if channel is not registered.

process()

virtual void pottu::TimeAdjuster::process ( std::vector< DetectorEvent > &  input, std::vector< DetectorEvent > &  output  )

inlinevirtual

Consumes detector events and returns different detector events.

Parameters

input	Detector events to consume. Do not use the events in input after this call.
output	Detector events (usually different than input) returned.

Stage using this kind of process pattern typically holds a buffer of detector events.

Implements pottu::StageDetectorEventToDetectorEvent.

setCorrection()

void pottu::TimeAdjuster::setCorrection ( uint16_t  ch, int64_t  correction  )

inline

Registers timestamp correction for a channel.

Parameters

ch	Channel the correction should be applied
correction	Correction in tics. Positive value delays the event.

---

The documentation for this class was generated from the following file:

• /home/jhsaren/git/analysis/pottu/pottu/TimeAdjuster.hpp
