pottu::RawHistogrammer< EventOp > Class Template Reference

Inheritance diagram for pottu::RawHistogrammer< EventOp >:

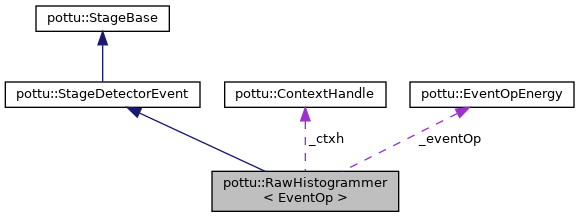

Collaboration diagram for pottu::RawHistogrammer< EventOp >:

Public Member Functions
	RawHistogrammer (EventOp eventOp)
void	setHistogram (uint16_t ch, _histogram_1d_type *h)
	Sets individual histogram to a channel. More...
_histogram_1d_type *	getHistogram (uint16_t ch) noexcept
void	createAndSetHistogramsChannelInterval (_result_tree_type tree, const std::string &prefix, uint16_t chFirst, uint16_t chLast, double low, double high, unsigned int binc)
template<class DAQCH >
void	setGroup (DetectorEvent::group_type group, double low, double high, unsigned int binc, const DAQCH &daqchannels, _result_tree_type tree)
virtual void	process (std::vector< DetectorEvent > &data) noexcept
	Uses or modifies detector events in a container. More...
Public Member Functions inherited from pottu::StageDetectorEvent
virtual	~StageDetectorEvent ()
	Virtual desctructor.

Public Attributes
ContextHandle *	_ctxh
EventOp	_eventOp
std::vector< _histogram_1d_type * >	_histos

Member Function Documentation

process()

template<class EventOp = EventOpEnergy>

virtual void pottu::RawHistogrammer< EventOp >::process ( std::vector< DetectorEvent > &  data )

inlinevirtualnoexcept

Uses or modifies detector events in a container.

Parameters

data	Vector containing detector events to be modified or used.

Typically only the fields of each detector event is modified and the event is otherwise kept the same.

Implements pottu::StageDetectorEvent.

setGroup()

template<class EventOp = EventOpEnergy>

template<class DAQCH >

void pottu::RawHistogrammer< EventOp >::setGroup ( DetectorEvent::group_type  group, double  low, double  high, unsigned int  binc, const DAQCH &  daqchannels, _result_tree_type  tree  )

inline

Creates histogram for the group and attaches all channels to it

Parameters

group	Group index
low	low value of the histogram
high	high value of the histogram
binc	number of bins for the histogram
daqchannels	DAQChannels object to find the channels for the group group.
tree	Pointer to the result tree where new histogram is to be created.

setHistogram()

template<class EventOp = EventOpEnergy>

void pottu::RawHistogrammer< EventOp >::setHistogram ( uint16_t  ch, _histogram_1d_type *  h  )

inline

Sets individual histogram to a channel.

Histogram is owned by the caller also after this call.

NOTE: There is only one histogram for a channel so only the last set for a channel is effective. Therefore, use different RawHistogrammer instances for group and individual channel histogramming.

---

The documentation for this class was generated from the following file:

• /home/jhsaren/git/analysis/pottu/pottu/RawHistogrammer.hpp
