pottu::LogicalEventSorter< Ev, Tr, D > Class Template Reference

Convenience base class for user sort classes. More...

#include <LogicalEventSorter.hpp>

Inheritance diagram for pottu::LogicalEventSorter< Ev, Tr, D >:

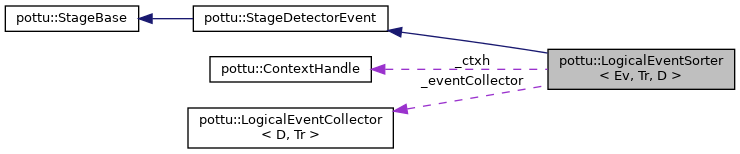

Collaboration diagram for pottu::LogicalEventSorter< Ev, Tr, D >:

Public Types
using	logical_event_pool_t = SharedResourcePool< Ev >
using	logical_event_handle_t = typename logical_event_pool_t::logical_event_handle_t

Public Member Functions
	LogicalEventSorter (const std::string &name, int triggerDeadTime, int eventDelay, int maxEventLength)
	Constructor. More...
void	process (std::vector< DetectorEvent > &data) noexcept
	Feeds data to object buffers. Tests for triggers. More...
int64_t	getEventMaxLength () const
	Returns the maximum event length. More...
int64_t	getEventDelay () const
	Returns the event delay. More...
int64_t	getTriggerDeadtime () const
	Returns the trigger dead time. More...
Public Member Functions inherited from pottu::StageDetectorEvent
virtual	~StageDetectorEvent ()
	Virtual desctructor.

Protected Member Functions
logical_event_handle_t	getNewEvent () noexcept
	Returns new logical event. More...
ContextHandle *	context () noexcept
	Returns pointer to the ContextHandle. More...

Protected Attributes
ContextHandle *	_ctxh
	Handle for the context.
logical_event_pool_t	_logicalEventPool
Tr	_triggerer
LogicalEventCollector< D, Tr >	_eventCollector

Detailed Description

template<class Ev, class Tr, class D>
class pottu::LogicalEventSorter< Ev, Tr, D >

Convenience base class for user sort classes.

Deprecated:

. Please use LogicalEventSorterBase instead.

This base class implements process() method which calls LogicalEventCollector which then calls the methods onTimeOrderError() and constructAndProcessLogicalEvent() of the user class.

Template Parameters

Ev	Logical event class. Must be derived from SharedResource and implement clear() method. The clear should initiate an instance so that it can be used again.
Tr	Trigger class. Should implement methods feed() and reset(). Trigger can have internal state. One instance of this class will be created by LogicalEventSorter.
D	The inherited user class. This type is required to call the beforementioned user class methods on time order error and on event creation.

Constructor & Destructor Documentation

LogicalEventSorter()

template<class Ev , class Tr , class D >

pottu::LogicalEventSorter< Ev, Tr, D >::LogicalEventSorter ( const std::string &  name, int  triggerDeadTime, int  eventDelay, int  maxEventLength  )

inline

Constructor.

Parameters

name	Name for the instance handle to the context. This is used in prosessing stage statistics.
triggerDeadTime	Time [tics] after trigger a new trigger is not allowed.
eventDelay	Time [tics] after trigger the event will be started. Can be also negative to collect detector event before a trigger.
maxEventLength	Maximum length of the collected event [tics] from triggertime + eventDelay.

Member Function Documentation

context()

template<class Ev , class Tr , class D >

ContextHandle* pottu::LogicalEventSorter< Ev, Tr, D >::context ( )

inlineprotectednoexcept

Returns pointer to the ContextHandle.

Typically this is used to print some log messages by calling

context->logInfo("Something happened");

getEventDelay()

template<class Ev , class Tr , class D >

int64_t pottu::LogicalEventSorter< Ev, Tr, D >::getEventDelay ( ) const

inline

Returns the event delay.

Returns

The event delay.

getEventMaxLength()

template<class Ev , class Tr , class D >

int64_t pottu::LogicalEventSorter< Ev, Tr, D >::getEventMaxLength ( ) const

inline

Returns the maximum event length.

Returns

The maximum event length

getNewEvent()

template<class Ev , class Tr , class D >

logical_event_handle_t pottu::LogicalEventSorter< Ev, Tr, D >::getNewEvent ( )

inlineprotectednoexcept

Returns new logical event.

The returned event is allocated or recycled and clear() has been called for it.

getTriggerDeadtime()

template<class Ev , class Tr , class D >

int64_t pottu::LogicalEventSorter< Ev, Tr, D >::getTriggerDeadtime ( ) const

inline

Returns the trigger dead time.

Returns

The trigger dead time

process()

template<class Ev , class Tr , class D >

void pottu::LogicalEventSorter< Ev, Tr, D >::process ( std::vector< DetectorEvent > &  data )

inlinevirtualnoexcept

Feeds data to object buffers. Tests for triggers.

Parameters

data	Detector events to be fed into the buffers.

Implements pottu::StageDetectorEvent.

---

The documentation for this class was generated from the following file:

• /home/jhsaren/git/analysis/pottu/pottu/LogicalEventSorter.hpp
